1.2 Platform Architecture

 The architecture of the VRE includes two distinct data storage areas: the Green Room and the VRE Core. The Green Room is a segregated data zone for the storage of data with personally identifiable information. The VRE Core supports the full lifecycle of data after being deidentified in the Green Room. The VRE provides a Researcher Portal to manage research projects, files and users, data storage via Data Lake and Data Warehouse, and workbenches for researchers to perform secure modelling, simulation, and analysis of data with Shared Services and Analytic Resources (Figure 1).

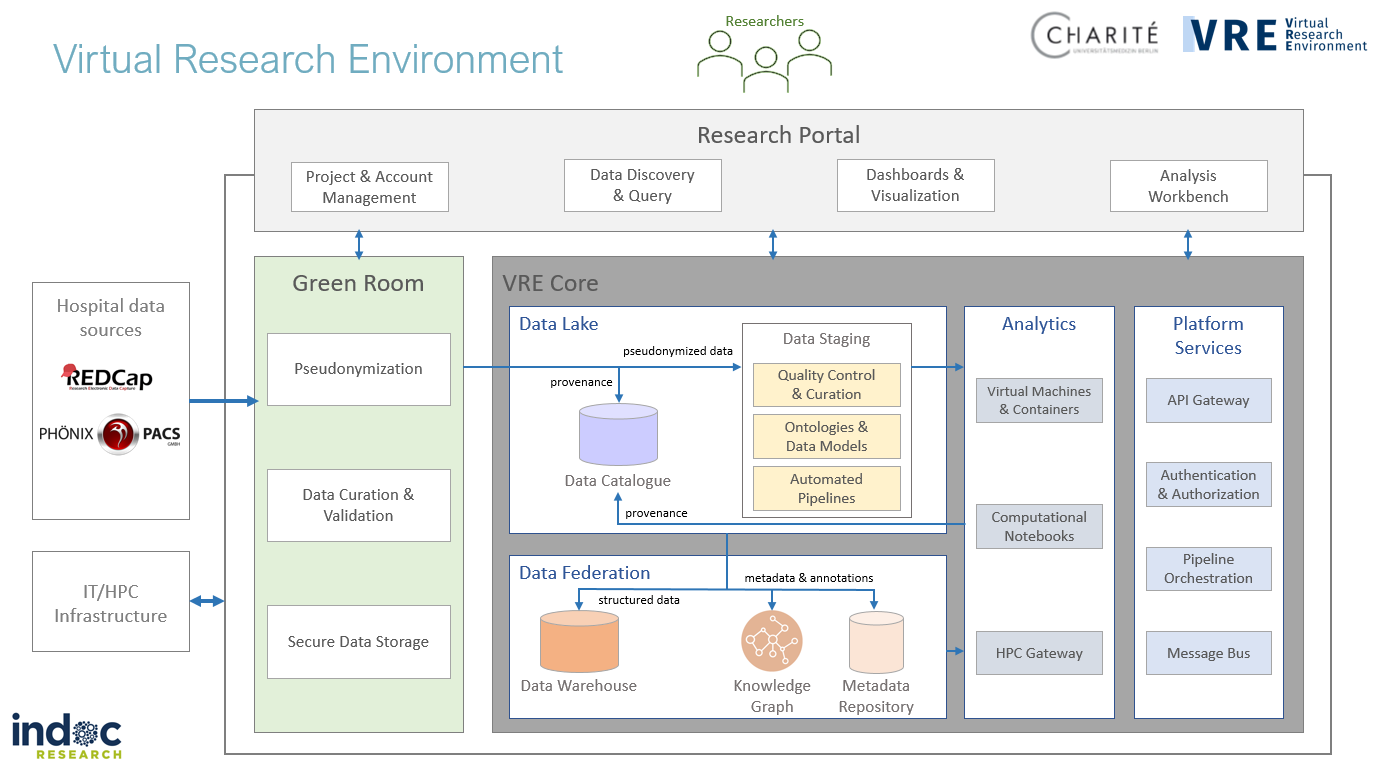

Figure 1. Schematic Diagram of VRE Components
